Trace with Google ADK

LangSmith supports tracing Google Agent Development Kit (ADK) applications through the OpenTelemetry integration. This guide shows you how to automatically capture traces from your Google ADK agents and send them to LangSmith for monitoring and analysis.

Installation

Install the required packages using your preferred package manager:

pip

pip install langsmith google-adk

uv add langsmith google-adk

Requires LangSmith Python SDK version langsmith>=0.4.26 for optimal OpenTelemetry support.

Setup

1. Configure environment variables

Set your LangSmith API key and project name:

Shell

export LANGSMITH_API_KEY=<your_langsmith_api_key>
export LANGSMITH_PROJECT=<your_project_name>

2. Configure OpenTelemetry integration

In your Google ADK application, import and configure the LangSmith OpenTelemetry integration. This will automatically instrument Google ADK spans for OpenTelemetry.

from langsmith.integrations.otel import configure

# Configure LangSmith tracing
configure(project_name="adk-example")  # Optional: can also use LANGSMITH_PROJECT and LANGSMITH_API_KEY environment variables

Alternatively, you can use the Openinference GoogleADKInstrumentor:

from langsmith.integrations.otel import configure
from openinference.instrumentation.google_adk import GoogleADKInstrumentor

# Configure LangSmith tracing
configure(project_name="adk-example")

# Instrument Google ADK directly
GoogleADKInstrumentor().instrument()

You do not need to set any OpenTelemetry environment variables or configure exporters manually—configure() handles everything automatically.

3. Create and run your ADK agent

Once configured, your Google ADK application will automatically send traces to LangSmith:

This example includes a minimal app that sets up an agent, session, and runner, then sends a message and streams events.

import asyncio
from langsmith.integrations.otel import configure
from google.adk import Runner
from google.adk.agents import LlmAgent
from google.adk.sessions import InMemorySessionService
from google.genai import types

# Configure LangSmith tracing
configure(project_name="travel-assistant")

# Define your tools
def get_flight_info(destination: str, departure_date: str) -> dict:
    """Get flight information for a destination."""
    return {
        "destination": destination,
        "departure_date": departure_date,
        "price": "$450",
        "duration": "5h 30m",
        "airline": "Example Airways"
    }

def get_hotel_recommendations(city: str, check_in: str) -> dict:
    """Get hotel recommendations for a city."""
    return {
        "city": city,
        "check_in": check_in,
        "hotels": [
            {"name": "Grand Plaza Hotel", "rating": 4.5, "price": "$120/night"},
            {"name": "City Center Inn", "rating": 4.2, "price": "$95/night"}
        ]
    }

async def main():
    # Create your ADK agent
    agent = LlmAgent(
        name="travel_assistant",
        tools=[get_flight_info, get_hotel_recommendations],
        model="gemini-2.5-flash-lite",
        instruction="You are a helpful travel assistant that can help with flights and hotels.",
    )

    # Set up session service and runner
    session_service = InMemorySessionService()
    runner = Runner(
        app_name="travel_app",
        agent=agent,
        session_service=session_service
    )

    # Create a session
    user_id = "traveler_456"
    session_id = "session_789"
    await session_service.create_session(
        app_name="travel_app",
        user_id=user_id,
        session_id=session_id
    )

    # Send a message to the agent
    new_message = types.Content(
        parts=[types.Part(text="I need to book a flight to Paris for March 15th and find a good hotel.")],
        role="user",
    )

    # Run the agent and process events
    events = runner.run(
        user_id=user_id,
        session_id=session_id,
        new_message=new_message,
    )

    for event in events:
        print(event)

if __name__ == "__main__":
    asyncio.run(main())

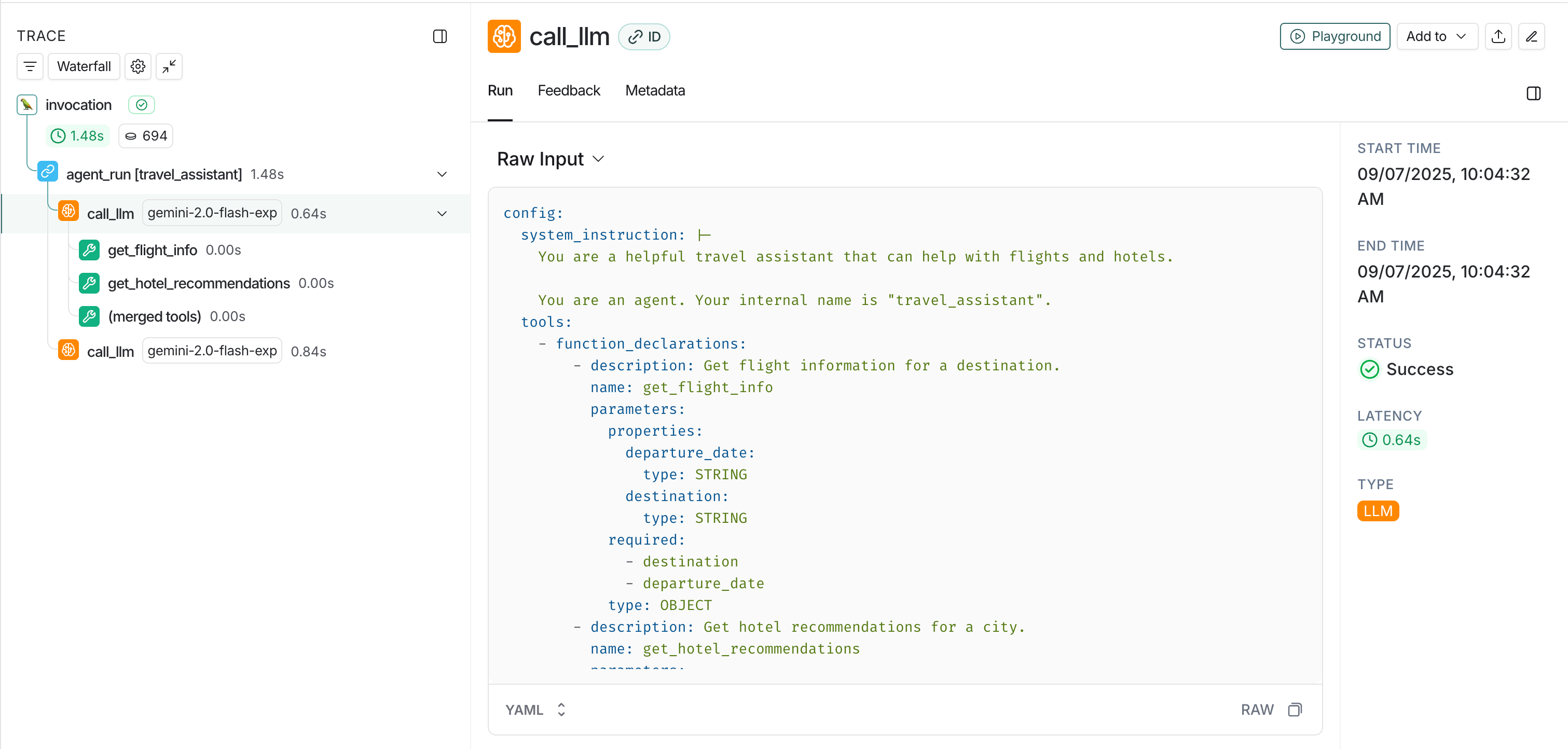

View traces in LangSmith

• Agent conversations: Complete conversation flows between users and your ADK agents.
• Tool calls: Individual function calls made by your agents.
• Model interactions: LLM requests and responses using Gemini models.
• Session information: User and session context for organizing related traces.
• Model interactions: LLM requests and responses using Gemini models

Advanced usage

Custom metadata and tags

You can add custom metadata to your traces by setting span attributes in your ADK application:

from opentelemetry import trace

# Get the current tracer
tracer = trace.get_tracer(__name__)

async def main():
    with tracer.start_as_current_span("travel_booking_session") as span:
        # Add custom metadata
        span.set_attribute("langsmith.metadata.user_type", "premium")
        span.set_attribute("langsmith.metadata.booking_source", "mobile_app")
        span.set_attribute("langsmith.span.tags", "travel,booking,premium")

        agent = LlmAgent(
            name="travel_assistant",
            tools=[get_flight_info, get_hotel_recommendations],
            model="gemini-2.5-flash-lite",
            instruction="You are a helpful travel assistant that can help with flights and hotels.",
        )

        session_service = InMemorySessionService()
        runner = Runner(
            app_name="travel_app",
            agent=agent,
            session_service=session_service
        )

        # Continue with your ADK workflow
        # ...

---
